¥82,579 JPY ¥88,000 JPY
| /
| Brand |
ROSSO MODELLO
|
| Series Name |

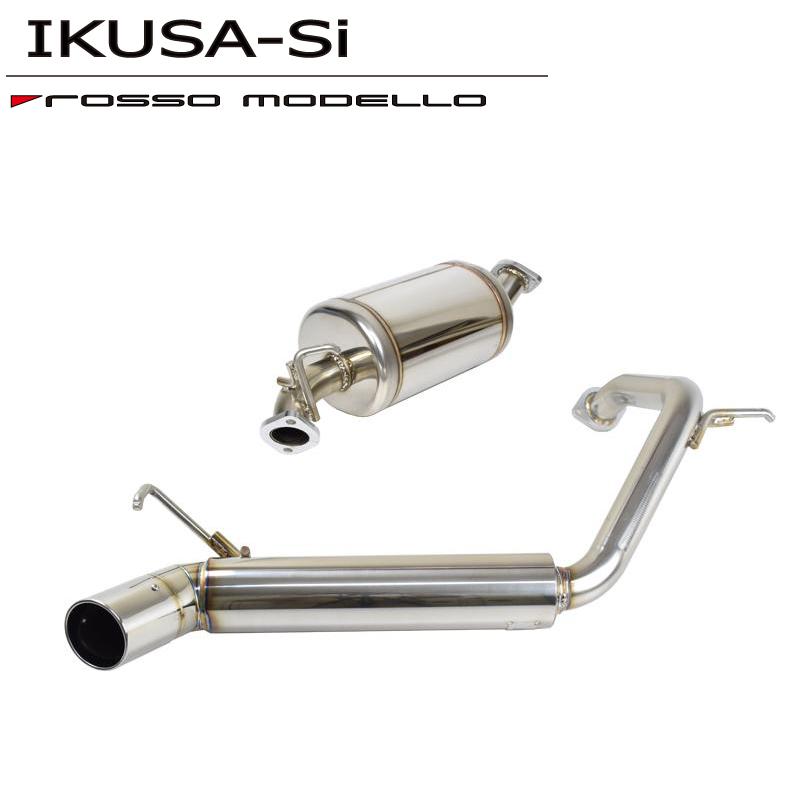

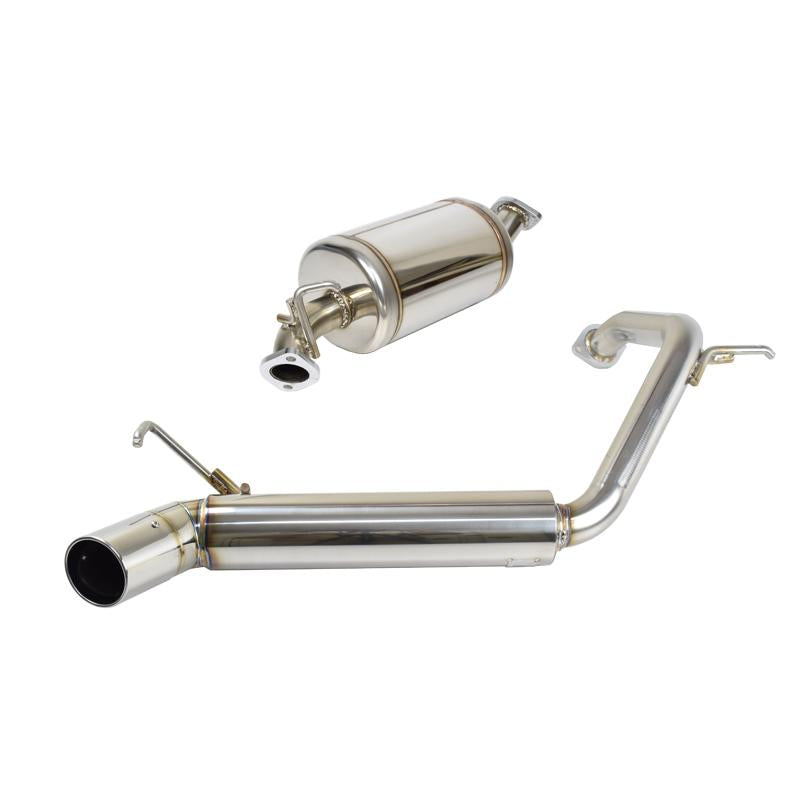

ROSSO MODELLO IKUSA-SI STAINLESS TAIL EXHAUST MUFFLER FOR SUZUKI XBEE 4WD MN71S K10C K10C-WA05A Z12E-WA06D COBX-I740
|
| Product Number |
COBX-I740
|
| Compatible Car |
SUZUKI XBEE 4WD MN71S
|
| Compatible Engine |
K10C K10C-WA05A Z12E-WA06D
|
| Product Description |

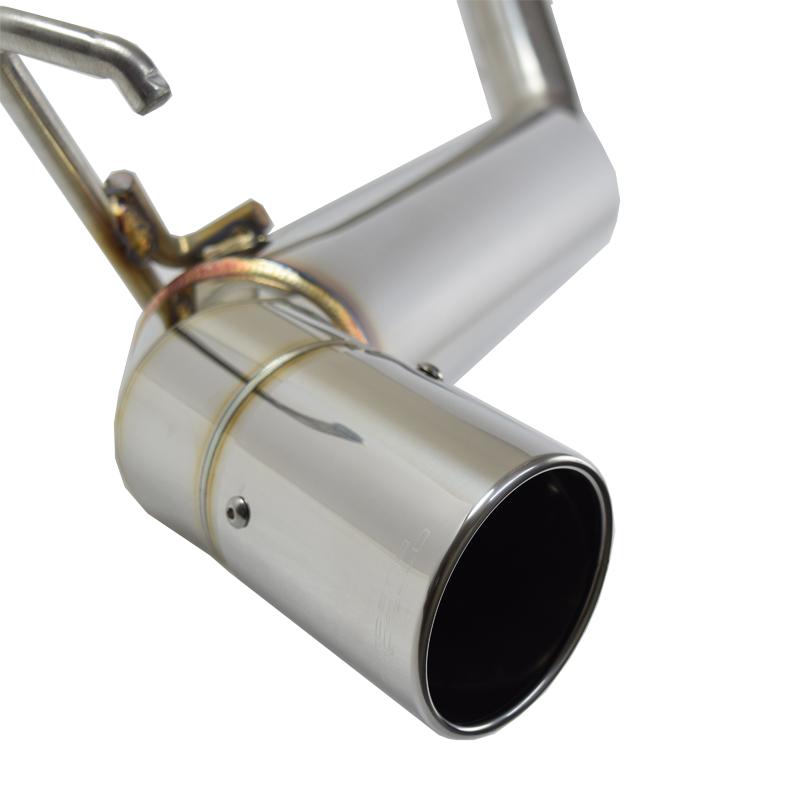

Compatible Year Model: 2017/12-<br>Brand: ROSSO MODELLO (Japan)<br>Part Number: COBX-I740<br>Product: IKUSA-SI STAINLESS TAIL EXHAUST MUFFLER<br>Model Code: DAA-MN71S, 4AA-MN71S, 5AA-MND1S<br>Grade: 4WD models<br>Drive: 4WD<br>Engine: K10C K10C-WA05A Z12E-WA06D<br>Tail Outlet: 80 mm, left side mm<br>Tail Pipe: 80 mm stainless steel (rear section replacement type)<br>Main Pipe: 50.8<br>Material: SUS304 stainless steel<br>Exhaust Noise: Zenki (early model): 83 dB (at 4,125 rpm); kouki (late model): 80 dB (at 3,800 rpm)<br>Included: Gasket, bolts, nuts, left mounting bracket set<br>Installation: 4WD only, left angled exit layout. Minimum ground clearance: muffler body 210 mm, tail section 220 mm<br>Notes: 2-piece, left exit, 4WD only, 4AA- compatible<br>IKUSA is Rosso Modello's vehicle-specific series for RV / SUV / 4x4 owners, combining practicality with an aggressive off-road look. Designed and manufactured in-house in Japan.
|
| Remarks |
Tow hook cannot be used after installation. Fitment on vehicles with rear under garnish not verified. For a different colour, purchase the separately sold part (TIC-999) and swap. Images are for illustration; the actual product may differ.
|
| Notes |
Images are for illustration purpose only. Actual product may vary.
|
